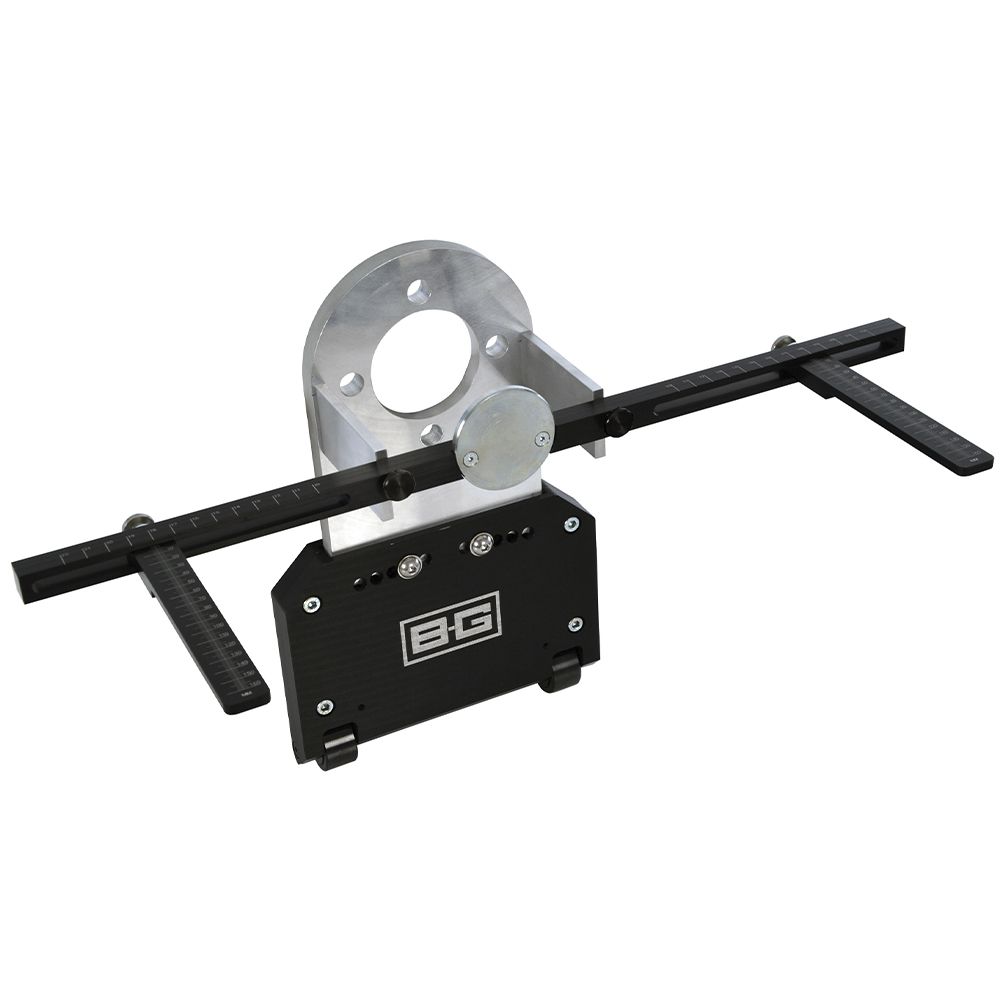

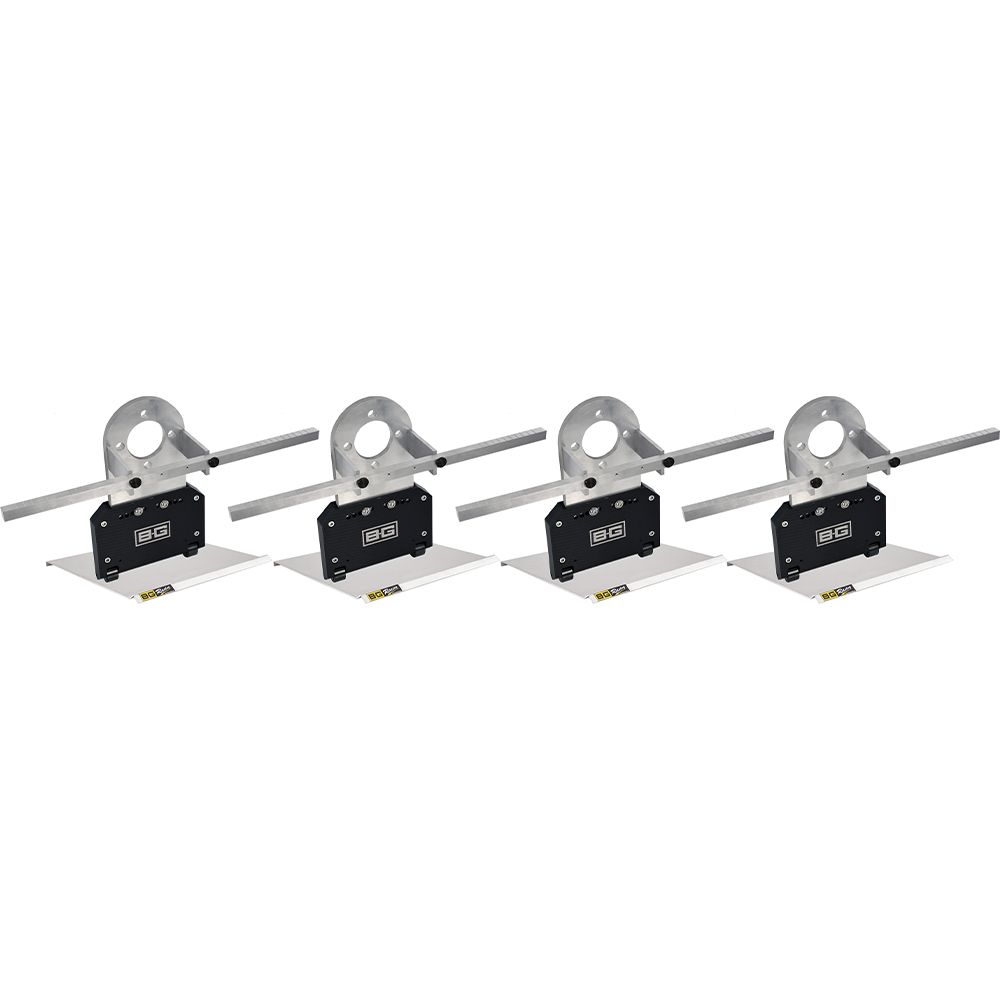

B-G Racing Hub Stands Kit (2000kg) - 5X120, 114.3 & 108mm pcd - Cbø76.2mm

Add To Basket
Part Number/SKU:BGR9004
In Stock
Checkout Now

Description

Designed, developed and precision manufactured in the UK to the highest quality from 6061 T6 Aluminium, the B-G Racing Hub Stands Kit is the ultimate solution for vehicle set up and alignment. This advanced and proven system replaces the vehicle wheel and tyre set, giving access to carry out a complete suspension and alignment set up without needing to lift the vehicle, and eliminating the need to roll the vehicle on and off scale pads to unload the suspension after adjustments. The changes occur in real time! With B-G Racing Hub Stands, set up is faster and more precise than using a wheel and tyre set, with repeatable, accurate measurements instead of ever-changing figures caused by wheel and tyre variations. Each base features a pair of high load, low resistance roller bearing wheels which allow the Hub Stands to respond with the vehicle suspension as changes are made. This keeps the suspension bind-free which in turn makes the adjustment process quick and easy, showing the results of your adjustments instantly. The B-G Racing Hub Stands are height adjustable to suit different tyre diameters and can be supplied with a variety of multi-drilled plate to suit different vehicle bolt patterns. The interchangeable plates are available in a wide range of configurations including a selection of hubs with centre locking wheels and any custom application. Each set of B-G Racing Hub Stands comes with a set of four aluminium Toe Sticks, precisely CNC machined in order to be bolted parallel to the hub face for stringing, or at the bottom of the base for measuring total toe. The Hub Stands are supplied with a set of eight 105mm Toe Stub Extensions designed to offset the Toe Stick away from the hub to clear large brake calipers and grease caps. A set of four stainless steel safety plates are also included in the kit which are used to prevent the vehicle from rolling off the scale pads. The B-G Racing Hub Stands are suitable for vehicles up to a weight of 2000kg (4400lbs). If you are not sure which application you need for your vehicle, please contact us via phone or email and we will be happy to discuss the options available. BG Racing Hub Stands Kit The kit comprises of four machined aluminium base assemblies and a set of your choice of interchangeable, multiple bolt pattern hub plates, four aluminium toe stick, eight 105mm toe stubs, and four stainless steel safety plates. Additional Hub Plates Allows one set of Hub Stand bases to be used on multiple vehicles with different PCD’s. Consists of four plates. Centre Nut Collars Designed to allow cars with hubs utilising single centre locking wheel nuts to be used with Hub Stands. The collars are CNC machined in the UK from 6061 T6 aluminium and they are tailor made to match each wheel nut to ensure the Hub Stand centralises to provide repeatable measurements. Bespoke fitments are available on request, please contact us to request a specification form. The kit generally consists of four to eight collars depending upon vehicle specific details.
