Lazer Carbon-4 Spot (Gen 3) Features
- Ultra-lightweight, high-strength composite material housing
- Combination of high intensity ‘matrix’ LEDs
- Available with Spot or Drive optics
- Full-beam mode and secondary low/dipped beam mode
- Low/dipped beam mode optimised for snow/fog/dust conditions

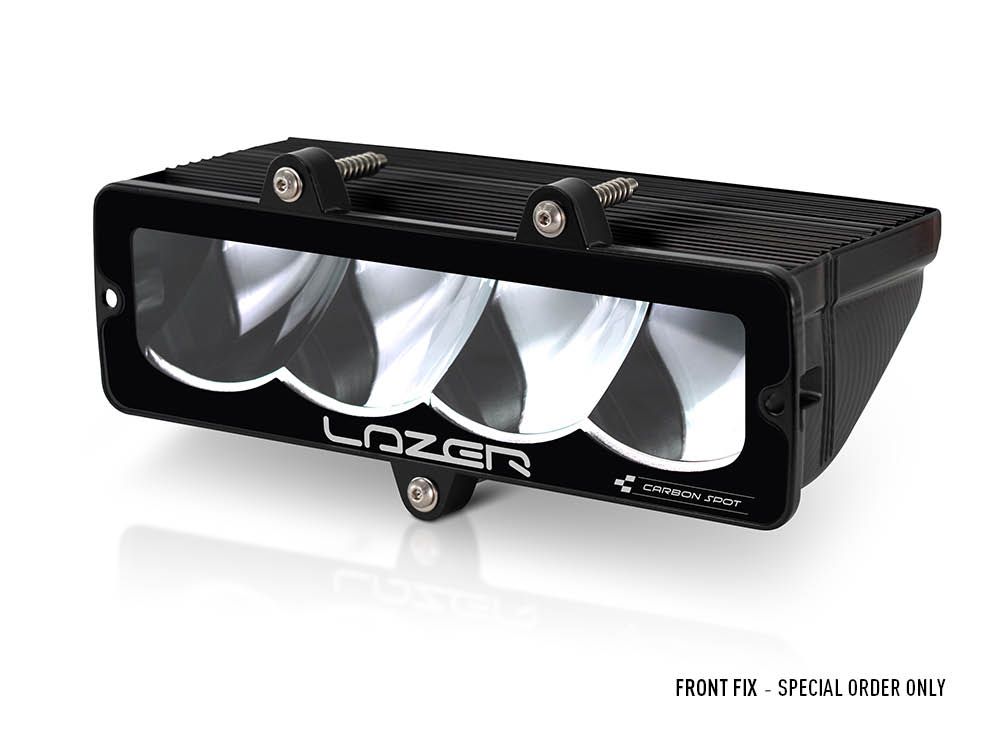

- Front-fixing (special order only) and side mounting variants available
- Carefully selected 5000K colour temperature maximises sharpness and definition
- CAE-optimised heatsink requires minimal airflow to maintain 100% light output
- Dynamic drive modulation preserves electronic components in adverse conditions
- Low profile, edge-to-edge design for improved aerodynamic performance
- Lamp features a built-in DT04-4P Deutsch Connector (gold plated solid DT contacts)
- Vehicle side connector, plus 300mm cable length supplied with each lamp.
- Compatible wiring looms available
- ‘Unbreakable’ polycarbonate lens
- IP68 watertight
- 5-year warranty
- Designed & manufactured in Britain
Now in its 3rd generation, the Lazer Carbon Series LED driving lights represent years of continued development and testing at the very highest levels of professional rally, track, and off-road motorsport. The re-design and re-engineering of the products delivers more light, less weight, greater functionality, and ease of fitment.
The Lazer Carbon-4 comes with the option for either a ‘Spot’ or ‘Drive’ beam pattern. The Spot version delivers 1 lux to 675m (per lamp) with a 32 degree left/right spread. By contrast the Drive version provides a wider left/right spread of light equivalent to 60 degrees with the compromise being that the 1 lux line reaches measures at 374m. As well as operating in ‘High Beam’ mode, the lights can also be easily switched to a ‘Dip / Low Beam’ mode during operation, a function shared with other lamps in the Carbon Series range. In the Dip / Low Beam mode, the beam pattern drops by around 4 degrees, giving the driver an option to reduce glare in case of road signs during a rally stage, or in case of dust or fog in case of difficult race/road conditions. Additional lighting modes are also possible for race teams who want maximum flexibility, by application of a PWM signal from the vehicle.
Incorporating 24 premium ‘bin’ LEDs per lamp – 12 LEDs dedicated to the ‘High Beam’ function, and 12 LEDs to the ‘Dip / Low Beam’, each Carbon-4 emits 6,240 raw lumens (regardless of the mode being used), albeit customers applying PWM to manage the light output from their Carbon-4 have the potential to increase the total light output to 120%. Advanced electronic design, coupled with vacuum-metallised optics which harness the maximum amount of light, deliver more light to the road or track ahead where it’s needed. A CAE-optimised heatsink dissipates heat away from the lamp to maximise light output for longer, while Dynamic Drive Modulation regulates the light output to prevent damage to the electronic components in more extreme environmental and thermal conditions.
To facilitate mounting of the lights to a variety of vehicles, the Carbon-4 lamps come with the option for front-fixing or side-mounting. Please check the product imagery for more details, alternatively basic CAD model data is available on request if more analysis of each mounting option is needed before purchase.
Based on: 1x Carbon-4 Spot.
| Boost Mode |
Low Output Mode |
|
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Life | 50,000 hours | 50,000 hours |
| IP Rating | IP68 | IP68 |
| Weight | 355g | 355g |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 6240 Lm | 1384 Lm |
| Total Driver 'FOV' Flux † | 3679 Lm | 919 Lm |
| Colour Temperature | 5000K | 5000K |
| Number of High Output LEDs | 24 LEDs | 24 LEDs |
| Power Consumption | 56 W | 14 W |
| Peak Current Draw (11V) | 3.9 A | 1 A |
| Current Draw (14.4V) | 5.25 A | 1.3 A |
| DIMENSIONS | ||
| Width | 206mm | 206mm |
| Depth | 85mm | 85mm |
| Height | 62mm | 62mm |
| PHOTOMETRIC DATA | ||
| Horizontal Beam Angle | 32° | 32° |
| 0.25 lx Line | 1349m | 675m |
| 0.5 lx Line | 954m | 477m |
| 1 lx Line | 675m | 337m |
| 3 lx Line | 389m | 195m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down.
What's Included
- x1 Carbon-4 Spot (Gen3)
- x1 Installation Instructions
